Spring Fabrication Service
As one of the world’s best spring suppliers, Lexhardware is a long-established industry leader in manufacturing both stock and custom springs. Serving engineers worldwide, the company delivers fast, reliable solutions for OEM and MRO applications. With over 40,000 standard spring designs, Lexhardware supports everything from low-volume prototypes to high-volume production, supplying high-quality compression, extension, and torsion springs across diverse industries.

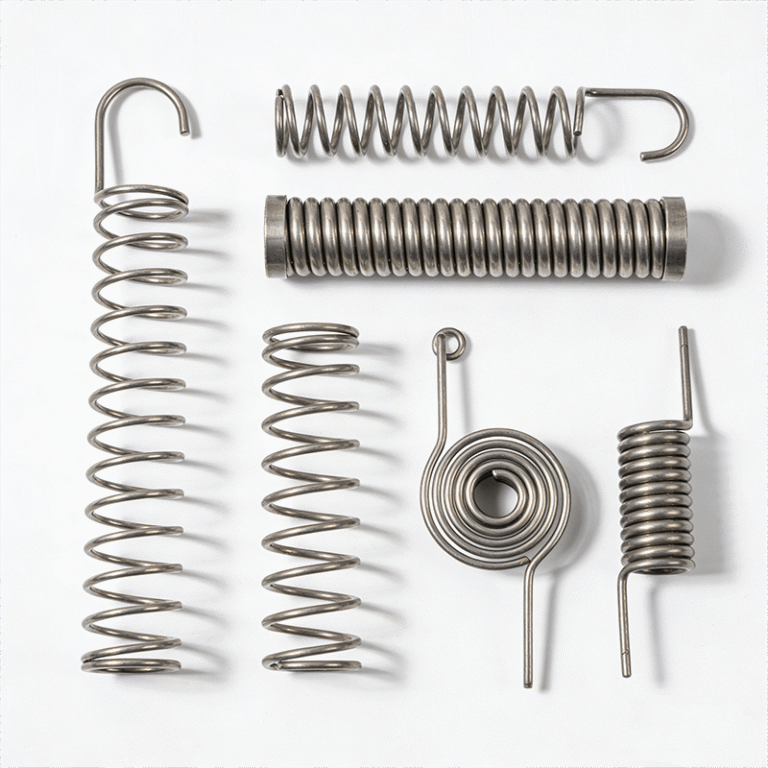

Lex Hardware Custom Springs

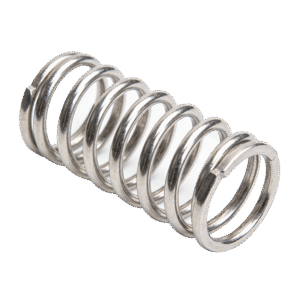

Compression Springs
When a force pushes against the ends of the spring, the coils move closer together.
Extension Springs
It stretches when a pulling force is applied and returns to its original length when the force is removed.
Torsion Springs
stores energy as its legs twist around the axis and releases it as rotational force.
Die Springs
Heavy-duty springs designed to withstand high loads and repeated use in tooling and die applications.

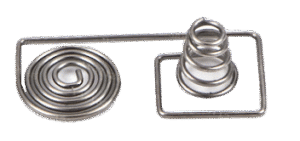

Battery Springs
Small compression springs used in battery holders to maintain electrical contact and absorb vibration.

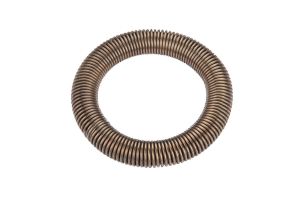

Compression Springs
A circular spring applies uniform inward or outward tension to hold components securely in place.

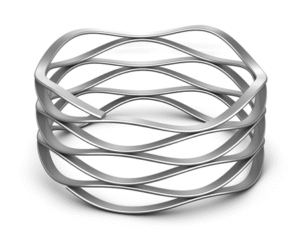

Wave Springs
A wave-like shape provide the same force as traditional compression springs in less space.

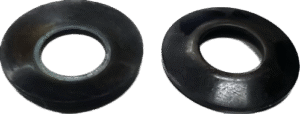

Disc Springs
Keep components spaced and maintain tension on shafts, under bolt heads, and at valve ends.

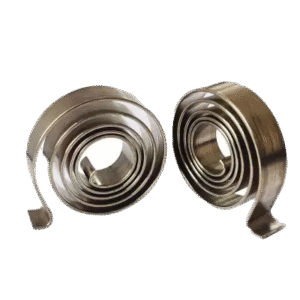

Rotor Springs
Stores and releases energy through rotational twisting.

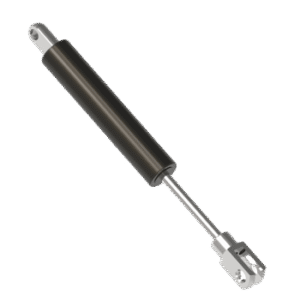

Gas Springs
Use compressed gas to provide controlled force and motion.
Plastic Composite Springs
The lightweight, corrosion-resistant springs made from reinforced polymers that store and release energy like metal springs.

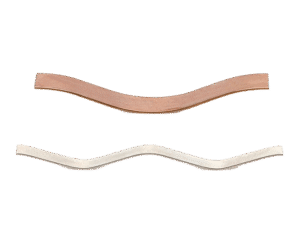

Linear Wave Springs
Provide axial force in a compact, space-saving design using waves in a flat wire coil.
Spring Materials Technical Specifications
The table below summarizes common spring materials, including chemical composition, mechanical properties, temperature limits, and typical applications.
| Material | Standard | Nominal Chemistry | Density (lb/in³) | Tensile Strength | Elastic Modulus E (×10⁶ psi) | Torsional Modulus G (×10⁶ psi) | Max Operating Temp | Typical Applications |
|---|---|---|---|---|---|---|---|---|
| Music Wire | ASTM A228 | High Carbon Steel (C 0.70–1.00%) | 0.28 | 230–399 ksi | 30 | 11.5 | 250°F (120°C) | Precision springs, electronics, small mechanical components |
| Oil Tempered Wire | ASTM A229 | Medium / High Carbon Steel | 0.28 | 165–324 ksi | 30 | 11.5 | 250°F (120°C) | Industrial springs, automotive components |
| Chrome Silicon Steel | ASTM A401 | Cr–Si Alloy Steel | 0.28 | 224–300 ksi | 30 | 11.5 | 475°F (245°C) | High-stress, high-temperature applications |
| Chrome Vanadium Steel | ASTM A231 | Cr–V Alloy Steel | 0.28 | 190–300 ksi | 30 | 11.5 | 425°F (220°C) | Shock-loaded and heavy-duty springs |
| 302 / 304 Stainless Steel | ASTM A313 | Cr–Ni Stainless Steel | 0.29 | 130–325 ksi | 28 | 10 | 550°F (290°C) | Corrosion-resistant springs, food & medical equipment |
| 316 Stainless Steel | ASTM A313 | Cr–Ni–Mo Stainless Steel | 0.29 | 125–245 ksi | 28 | 10 | 550°F (290°C) | Marine, chemical, and high-corrosion environments |
| 17-7 PH Stainless Steel | AMS 5678 | Cr–Ni–Al PH Stainless Steel | 0.28 | 230–343 ksi | 29.5 | 11 | 650°F (345°C) | Aerospace, precision and high-strength springs |
| Phosphor Bronze | ASTM B159 | Cu–Sn Alloy | 0.32 | 105–145 ksi | 15 | 6.25 | 200°F (95°C) | Electrical contacts, corrosion-resistant springs |
| Beryllium Copper | ASTM B197 | Cu–Be Alloy | 0.30 | 160–230 ksi | 18.5 | 7 | 400°F (205°C) | High-performance electronic and connector springs |
| Inconel X-750 | AMS 5698 | Nickel-Based Alloy | 0.30 | 155–220 ksi | 31 | 12 | 750–1100°F (400–595°C) | High-temperature and aerospace applications |
| Hastelloy C-276 | ASTM B574 | Ni–Cr–Mo Alloy | 0.32 | 100–200 ksi | 30.7 | 11.8 | 700°F (370°C) | Extreme corrosion and chemical processing environments |
Note: Values shown are typical reference ranges. Actual performance may vary depending on wire diameter, heat treatment, and manufacturing process.
CNC Machining FAQs
What's music wire?
Music wire is a high-carbon steel wire with excellent strength and elasticity, commonly used to make precision springs. It offers great fatigue resistance at room temperature but has limited corrosion and heat resistance.
Can you make springs from alloy wire?
We sure can! Alloy wire provides higher strength, better fatigue life, and improved heat and corrosion resistance compared to carbon steel, making it ideal for springs used in demanding or high-stress applications.
What types of materials can be used to manufacture springs?
We use the best metal for your project. We form standard springs and specialty springs made from stainless steel, copper wire, galvanized wire, Inconel, steel alloys, and more.
What industries do you serve?
CWe make springs for just about any industry you can think of. We’ve made springs for fast food automation and leading restaurant equipment suppliers. We’ve manufactured heavy-duty springs for residential and industrial garage doors and commercial overhead doors. We produce springs for attic ladders. We’ve put the spring in many a trampoline. We’ve made high-tensile springs for the agricultural industry.
Do you make springs from rectangular wire, square wire, or flattened round wire?
Yes, we do!
What is tensile strength?
Tensile strength is the maximum stress a material can withstand when being pulled or stretched before it breaks.
What should I send when I ask an online shop for a CNC quote?
Upload the CAD files, specify the material, state the tolerances, and list any finishes; with these details, the shop can give you a precise price and realistic delivery date.
